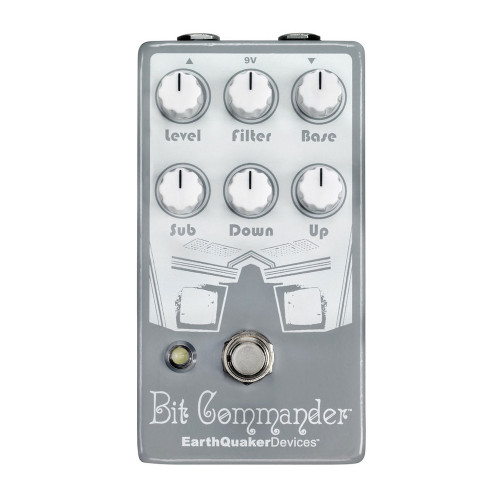

NEW EARTHQUAKER DEVICES BIT COMMANDER

 The Bit Commander is a monophonic analog guitar synthesizer with four octaves of vintage square wave synth tones. Its no-nonsense interface makes it easy to add or subtract octaves to create a wide variety of sounds without having to dial in envelopes or oscillators. Ripping sub-octave thump, pulsing octave down, a lightly squared base tone and a swelling transformer based octave up all join together to make a single guitar sound like an army of olde tyme synths.

1. Level: Master volume

2. Filter: Tone control more highs clockwise, more warmth counterclockwise

3. Base: Squared input signal level

4. Sub: Two octaves down level

5. Down 1: One octave down level

6. Up 1: One octave up level

Measures: 4.75" x 2.50" x 2.25" with knobs

Current Draw: 25 mA

Input Impedance: 50 KOhm

Output Impedance: <500 Ohm

Switching

This device is true bypass and uses electronic relay-based switching. Audio will not pass without power.

Power

This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!
