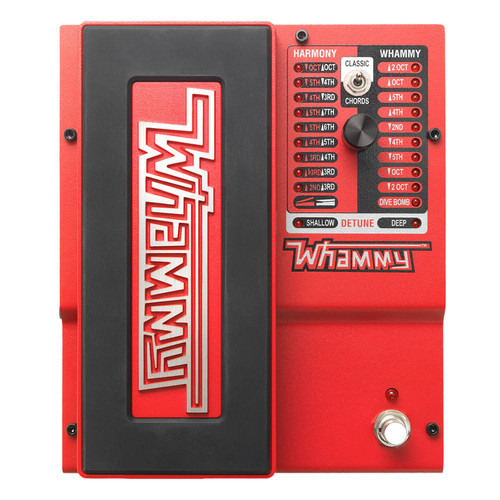

NEW DIGITECH WHAMMY 5

Brand :

Write a Review
$299.99
SKU:
NUE-DIGITECH-WHAMMY-5
UPC:
691991202629
Condition:
New
Shipping:
Free Shipping

NEW DIGITECH WHAMMY 5

2-MODE PITCH-SHIFT EFFECT WITH TRUE BYPASS



The legendary Whammy pedal is the premier pitch-shifting pedal for any guitarist’s board, and it only gets better with time. In addition to the classic Whammy sound, we’ve added chordal Whammy pitch-shifting and true bypass.



Whammy artists have won over 60 Grammys® using its unique pitch-shifting sound to enhance their music. Its songs echo the hallways of the Rock & Roll Hall of Fame® and generate acclaim on over 700 million albums around the world. There is no doubt why Whammy is one of the most common sights on guitarists’ pedalboards.



The Whammy can bring new depth to your artistry. Turn your solo into raging, rebellious screams of tone or tame your crowd with highly expressive, ambient chordal bends. Energize your audience with a scratchy note frenzy, bring them in and out of the sound tunnel with musical bursts, or carry them through an existential exploration of full-fretboard pitch translation. The Whammy puts expression into the expression pedal.



Don’t be the last guitarist without a Whammy!

WHAMMY

SPECIFICATIONS

General Specifications

SAMPLE RATE

44.1 kHz

FREQUENCY RESPONSE

20 Hz to 20 kHz

SIGNAL TO NOISE RATIO

> -105 dB (A weighted); ref = max level, 22 kHz bandwidth

THD

0.004% @ 1 kHz; ref = 1 dBu w/ unity

A/D CONVERSION

24 bit

D/A CONVERSION

24 bit

POWER CONSUMPTION

2.4 Watts (< 265 mA @ 9 VDC)

POWER ADAPTER

9 VDC External Adapter

TRUE BYPASS

Yes. With true bypass circuitry, the whammy is completely bypassed when both Whammy and Drop Tune effects are off.
Dimensions

HEIGHT

2.5" (64mm)

WIDTH

6.5" (165mm)

DEPTH

7.75" (197mm)
Audio Output

OUTPUT TYPE

1/4” Unbalanced TS

MAX OUTPUT LEVEL

+10 dBu

OUTPUT IMPEDANCE

1 kΩ
Audio Input

INSTRUMENT INPUT TYPE

1/4” Unbalanced TS

MAX INPUT LEVEL

+5 dBu

INPUT IMPEDANCE

1 MΩ

MIDI INPUT

5-Pin Din
